Scenario -Sort the employee data records (keep the header and footer as it is) based on the country code (from the 60th position of length 2) to the output file.

INPUT - MATEPK.INPUT.PSFILE1

----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
ENO  NAME          TECHNOLOGY          COMPANY   STATE     COUNTRY
========================================================================
001  PAWAN         MAINFRAME           JPM       AP        IN
003  SRIDHAR       SAS                 CG        OR        US
004  VENKATESH     ABAP                CSC       CA        US
006  PRASAD        HR                  INFOSYS   MI        US
002  SRINIVAS      TESTING             ORACLE    TG        IN
005  RAVI          HADOOP              CTS       FL        US
007  RAJA          TESTING             IBM       CA        US
========================================================================
TOTAL NUMBER OF RECORDS: 007

JCL -

----+----1----+----2----+----3----+----4----+----5----+
//MATEPKDC JOB (123),'MATEPK',CLASS=A,MSGCLASS=A,
//             MSGLEVEL=(1,1),NOTIFY=&SYSUID
//*
//STEP01   EXEC PGM=ICETOOL
//INDD     DD DSN=MATEPK.INPUT.PSFILE1,DISP=SHR
//OUTDD    DD DSN=MATEPK.OUTPUT.PSFILE1,
//            DISP=(NEW,CATLG,DELETE),VOLUME=SER=DEVHD4,
//            SPACE=(TRK,(1,1),RLSE),UNIT=SYSDA,
//            DCB=(DSORG=PS,RECFM=FB,LRECL=80,BLKSIZE=800)
//TOOLIN   DD *
  DATASORT FROM(INDD) TO(OUTDD) HEADER(2) TRAILER(2) USING(CTL1)
/*
//CTL1CNTL DD *
  SORT FIELDS=(60,2,CH,A)
/*
//TOOLMSG  DD SYSOUT=*
//DFSMSG   DD SYSOUT=*
//

OUTPUT - MATEPK.OUTPUT.PSFILE1

----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8
ENO  NAME          TECHNOLOGY          COMPANY   STATE     COUNTRY
========================================================================
001  PAWAN         MAINFRAME           JPM       AP        IN
002  SRINIVAS      TESTING             ORACLE    TG        IN
003  SRIDHAR       SAS                 CG        OR        US
004  VENKATESH     ABAP                CSC       CA        US
005  RAVI          HADOOP              CTS       FL        US
006  PRASAD        HR                  INFOSYS   MI        US
007  RAJA          TESTING             IBM       CA        US
========================================================================
TOTAL NUMBER OF RECORDS: 007

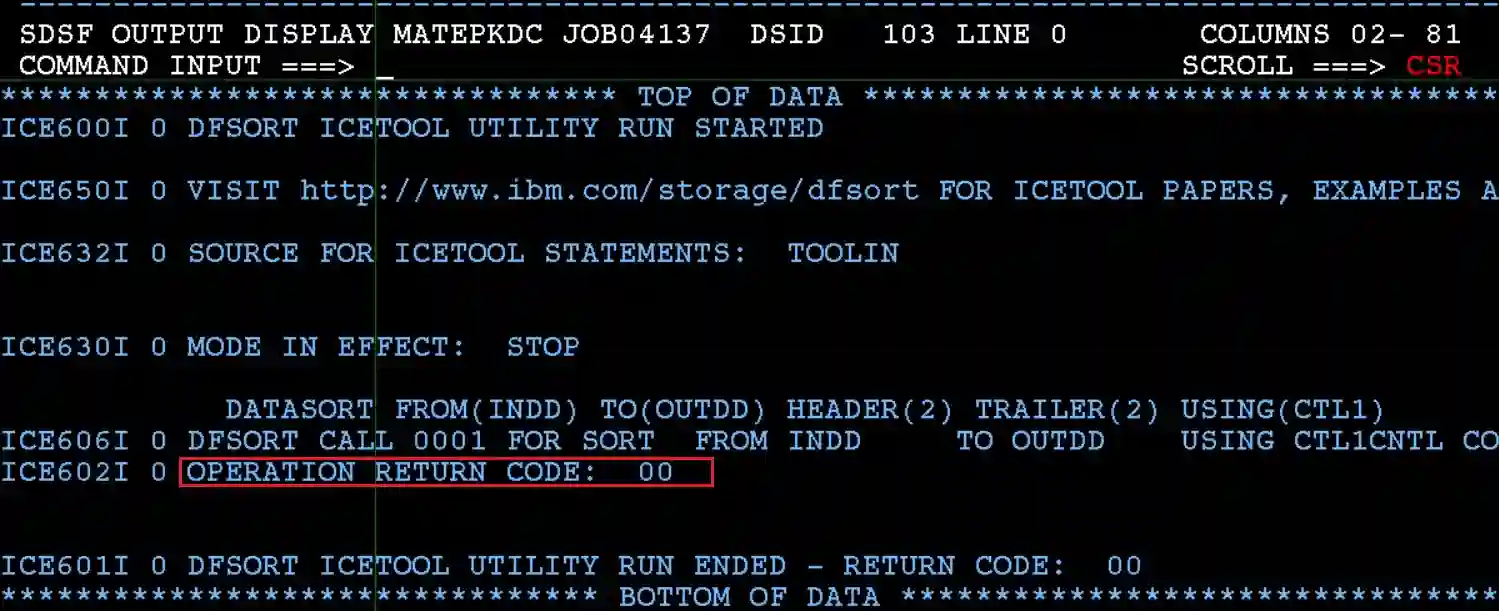

TOOLMSG (SDSF SPOOL) - Verify TOOLMSG for the return code of the submitted job.

Explaining Example -

• INDD - Specifies the ddname for input file.
• OUTDD - Specifies the ddname for output file.
• TOOLIN DD * - Specifies the ICETOOL statements for DFSORT.
• CTL1CNTL DD * - Specifies the DFSORT statements for processing.
• TOOLMSG - Specifies where to write the ICETOOL processing messages.
• DFSMSG - Specifies where to write the DFSORT processing messages.
• COPY FROM(INDD) TO(OUTDD) - Copies all the records from INDD file to OUTDD file.
• DATASORT FROM(INDD) TO(OUTDD) HEADER(2) TRAILER(2) USING(CTL1) - Filters the records from INDD by ignoring 2 header and 2 trailer records.
• SORT FIELDS=(60,2,CH,A) – DFSORT condition in CTL1 to sort the records from 60th position of 2 length.

---
