Input -

Cursor Declaration-

   EXEC SQL
	DECLARE CSS1 SCROLL CURSOR FOR
     	SELECT EMP_NAME,
               MANAGER_ID
     	FROM   EMPLOYEE_DETAILS
        FOR    FETCH ONLY
   END-EXEC.

Scenario1 - Place the cursor on the next row of the result table from the current position.

   EXEC SQL
	FETCH NEXT FROM CSS1
   END-EXEC.

Scenario2 - Place the cursor on the previous row of the result table from the current position.

EXEC SQL
	FETCH PRIOR FROM CSS1
   END-EXEC.

Scenario3 - Position the cursor on the first row of the result table.

   EXEC SQL
	FETCH FIRST FROM CSS1
   END-EXEC.

Scenario4 - Position the cursor on the last row of the result table.

   EXEC SQL
	FETCH LAST FROM CSS1
   END-EXEC.

Scenario5 - Position the cursor before the first row of the result table.

   EXEC SQL
	FETCH BEFORE FROM CSS1
   END-EXEC.

Scenario6 - Position the cursor after the last row of the result table.

   EXEC SQL
	FETCH AFTER FROM CSS1
   END-EXEC.

Scenario7 - Position the cursor 3 rows before the current cursor position.

   EXEC SQL
	FETCH RELATIVE -3 FROM CSS1
   END-EXEC.

Scenario8 - Position the cursor 4 rows after the current cursor position.

   EXEC SQL
	FETCH RELATIVE +4 FROM CSS1
   END-EXEC.

Pratical Example

Scenario - The below example describes how the scrollable cursor is coded in the COBOL + DB2 program.

Requirement - Display employee_details table data and from row 3 again.

SCROLLABLE CURSOR Example Code -

----+----1----+----2----+----3----+----4----+----5----+
       IDENTIFICATION DIVISION.
       PROGRAM-ID. CSCROLL.

       ENVIRONMENT DIVISION.
       DATA DIVISION.
       WORKING-STORAGE SECTION.

           EXEC SQL
             INCLUDE SQLCA
           END-EXEC.

           EXEC SQL
             INCLUDE EMPLDET
           END-EXEC.

      * DECLARING SCROLLABLE CURSOR
           EXEC SQL
                DECLARE CSR_SCROLL SCROLL CURSOR FOR
                SELECT EMP_ID,
                       EMP_NAME,
                       DESIGNATION,
                       MANAGER_ID,
                       DATE_OF_HIRE,
                       SALARY,
                       DEPT_ID
                FROM   EMPLOYEE_DETAILS
                ORDER  BY EMP_ID
                FOR    FETCH ONLY
           END-EXEC.

       PROCEDURE DIVISION.

      * OPENING CURSOR
           EXEC SQL
                OPEN CSR_SCROLL
           END-EXEC.

      * FETCHING CURSOR LOOP UNTIL END OF RESULT TABLE
           IF SQLCODE EQUAL ZERO
              PERFORM FETCH-EMP-DETAILS
                 THRU FETCH-EMP-DETAILS-EXIT
                UNTIL SQLCODE NOT EQUAL 0
           END-IF.

      * POSITION THE CURSOR ON THE FIRST ROW OF RESULT TABLE
           EXEC SQL
                FETCH FIRST FROM CSR_SCROLL
           END-EXEC.

      * POSITION THE CURSOR ON THE THIRD ROW OF RESULT TABLE
           EXEC SQL
                FETCH RELATIVE +1 FROM CSR_SCROLL
           END-EXEC.

      * FETCHING CURSOR LOOP UNTIL END OF RESULT TABLE
           IF SQLCODE EQUAL ZERO
              PERFORM FETCH-EMP-DETAILS
                 THRU FETCH-EMP-DETAILS-EXIT
                UNTIL SQLCODE NOT EQUAL 0
           END-IF.

      * CLOSING CURSOR
           EXEC SQL
                CLOSE CSR_SCROLL
           END-EXEC.

           STOP RUN.

       FETCH-EMP-DETAILS.

      * FETCH CURSOR
           EXEC SQL
                FETCH CSR_SCROLL
                INTO   :EMP-ID,
                       :EMP-NAME,
                       :DESIGNATION,
                       :MANAGER-ID
                       :MANAGER-ID-NI,
                       :DATE-OF-HIRE,
                       :SALARY,
                       :DEPT-ID
           END-EXEC.

           EVALUATE SQLCODE
               WHEN ZERO
                    DISPLAY  EMP-ID, "|", EMP-NAME, "|",
                             DESIGNATION, "|", MANAGER-ID, "|",
                             DATE-OF-HIRE, "|", SALARY, "|", DEPT-ID
               WHEN 100
                    CONTINUE
               WHEN OTHER
                    DISPLAY "DB2 ERROR:  ", SQLCODE
           END-EVALUATE.

       FETCH-EMP-DETAILS-EXIT.
           EXIT.

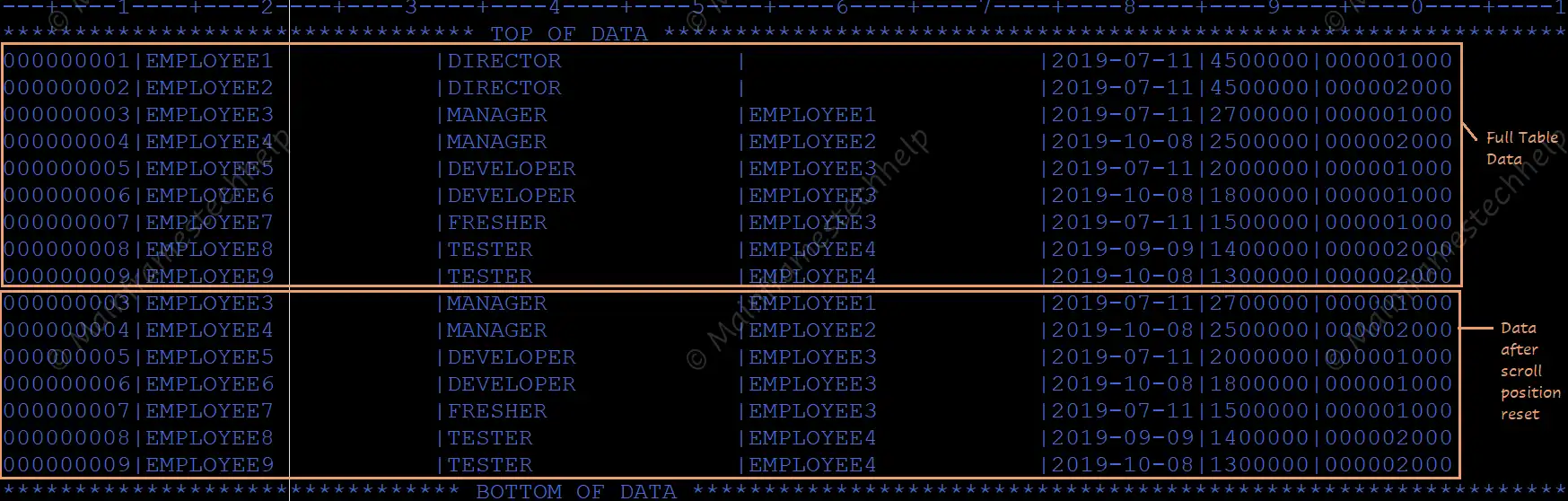

Output -

---
