Practical Example -

Scenario - Below example describes how the COBOL + DB2 program precompiled using JCL.

Input - EMPLOYEE_DETAILS table

COBOL + DB2 Program to retrieve employee with id 5.

----+----1----+----2----+----3----+----4----+----5----+
       IDENTIFICATION DIVISION.
       PROGRAM-ID. SELECT1.

       ENVIRONMENT DIVISION.
       DATA DIVISION.
       WORKING-STORAGE SECTION.

           EXEC SQL
             INCLUDE SQLCA
           END-EXEC.

           EXEC SQL
             INCLUDE EMPLDET
           END-EXEC.

       01 WS-EMPID          PIC S9(9) USAGE COMP.

       PROCEDURE DIVISION.

           MOVE 5    TO WS-EMPID.

           EXEC SQL
                SELECT EMP_ID,
                       EMP_NAME,
                       DESIGNATION,
                       MANAGER_ID,
                       DATE_OF_HIRE,
                       SALARY,
                       DEPT_ID
                INTO   :EMP-ID,
                       :EMP-NAME,
                       :DESIGNATION,
                       :MANAGER-ID,
                       :DATE-OF-HIRE,
                       :SALARY,
                       :DEPT-ID
                FROM   EMPLOYEE_DETAILS
                WHERE  EMP_ID = :WS-EMPID
           END-EXEC.

           IF SQLCODE = 0
              DISPLAY  EMP-ID,"|",EMP-NAME,"|",DESIGNATION,"|",
              MANAGER-ID,"|",DATE-OF-HIRE,"|",SALARY,"|",DEPT-ID
           ELSE
              IF SQLCODE = 100
                 DISPLAY "EMPLOYEE DETAILS NOT FOUND"
              ELSE
                 DISPLAY "DB2 ERROR"
              END-IF
           END-IF.

           STOP RUN.

Precompile Sample JCL Code -

----+----1----+----2----+----3----+----4----+----5----+
//MATEGJP JOB MSGLEVEL=(1,1),NOTIFY=&SYSUID
//*********************************************************
//*  COBOL + DB2 PRECOMPILE AND LINKEDIT                  *
//*********************************************************
//PCSTEP   EXEC PGM=DSNHPC,
//             PARM='HOST(IBMCOB),XREF,SOURCE,FLAG(I),APOST'
//STEPLIB  DD  DISP=SHR,DSN=DSNA10.DBAG.SDSNEXIT
//         DD  DISP=SHR,DSN=DSNA10.SDSNLOAD
//SYSCIN   DD  DSN=&&DSNHOUT,DISP=(MOD,PASS),UNIT=SYSDA,
//             SPACE=(800,(500,500))
//SYSIN    DD  DSN=MATEGJ.COBDB2.SRCLIB(SELECT1),DISP=SHR
//SYSLIB   DD  DSN=MATEGJ.COBDB2.DCLGEN,DISP=SHR
//         DD  DSN=MATEGJ.COBDB2.COPYLIB,DISP=SHR
//DBRMLIB  DD  DSN=MATEGJ.COBDB2.DBRMLIB(SELECT1),DISP=SHR
//SYSPRINT DD  SYSOUT=*
//SYSTERM  DD  SYSOUT=*
//SYSUDUMP DD  SYSOUT=*
//SYSUT1   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT2   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//**********************************************************
//*  Compile the COBOL program if the precompile           *
//*        return code is 4 or less.                       *
//**********************************************************
//COB      EXEC PGM=IGYCRCTL,
//             PARM=('SIZE(4000K),BUFSIZE(32760),
                 LIST,LIB,MAP,OBJECT',
//             'DATA(31),XREF,RENT'),
//             COND=(4,LT,PCSTEP)
//STEPLIB  DD  DSNAME=IGY420.SIGYCOMP,DISP=SHR
//SYSPRINT DD  SYSOUT=*
//SYSTERM  DD  SYSOUT=*
//SYSLIN   DD  DSN=&&LOADSET,DISP=(MOD,PASS),UNIT=SYSDA,
//             SPACE=(800,(500,500))
//SYSLIB   DD  DSN=MATEGJ.COBDB2.COPYLIB,DISP=SHR
//SYSIN    DD  DSN=&&DSNHOUT,DISP=(OLD,DELETE)
//SYSUT1   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT2   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT3   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT4   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT5   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT6   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//SYSUT7   DD  SPACE=(800,(500,500),,,ROUND),UNIT=SYSDA
//***************************************************
//*        Linkedit if the precompile and compile   *
//*        return codes are 4 or less.              *
//***************************************************
//LKED     EXEC PGM=IEWL,PARM='MAP,XREF',
//         COND=((4,LT,PCSTEP),(4,LT,COB))
//SYSLIB   DD  DISP=SHR,DSN=CEE.SCEELKED
//         DD  DISP=SHR,DSN=DSNA10.SDSNLOAD
//         DD  DISP=SHR,DSN=ISP.SISPLOAD
//         DD  DISP=SHR,DSN=GDDM.SADMMOD
//         DD  DISP=SHR,DSN=MATEGJ.COBDB2.LOADLIB
//SYSLIN   DD  DSN=&&LOADSET,DISP=(OLD,DELETE)
//         DD  DDNAME=SYSIN
//SYSLMOD  DD  DSN=MATEGJ.COBDB2.LOADLIB(SELECT1),DISP=SHR
//SYSPRINT DD  SYSOUT=*
//SYSUT1   DD  SPACE=(1024,(50,50)),UNIT=SYSDA
//SYSIN    DD  DUMMY

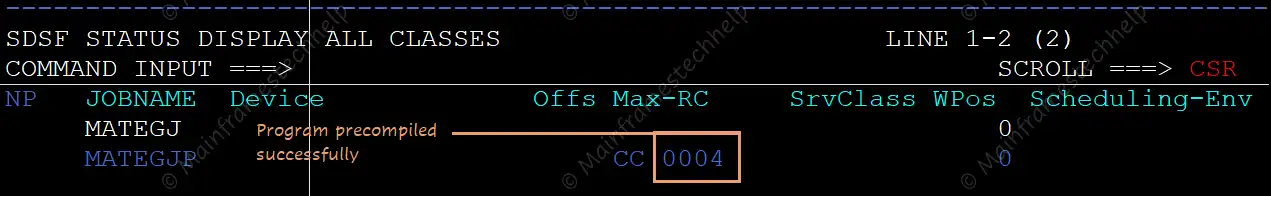

JOB Result - MAXCC

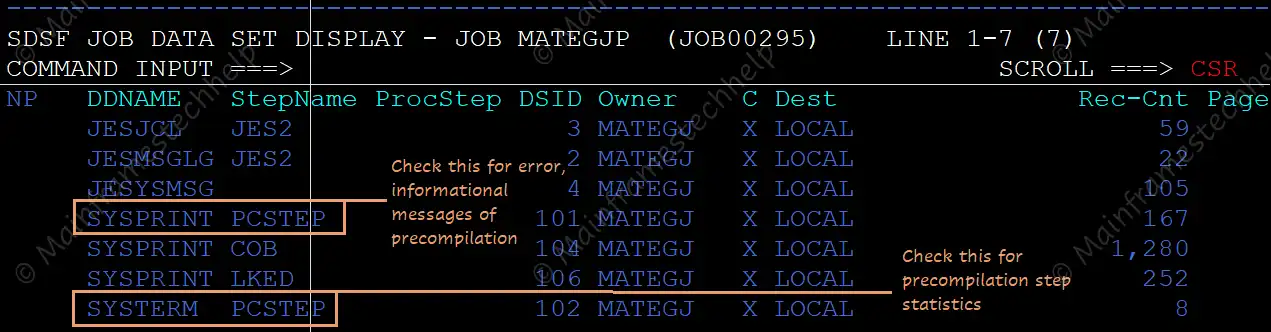

JOB Result - Precompile Step

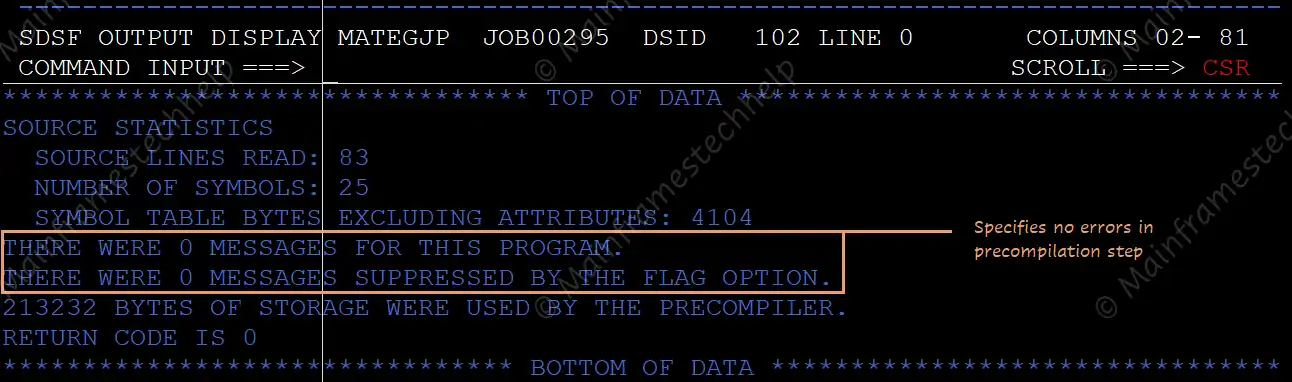

JOB Result - Precompile Step Final Report

---
