Architecture

The mainframe system architecture is a complex, highly scalable, and secure structure to handle large-scale processing of transactions, data, and critical applications. Here’s a breakdown of the architecture and its key components:

Overview

The architecture consists of layers that manage data input/output, processing, storage, security, and networking, all designed to work seamlessly together.

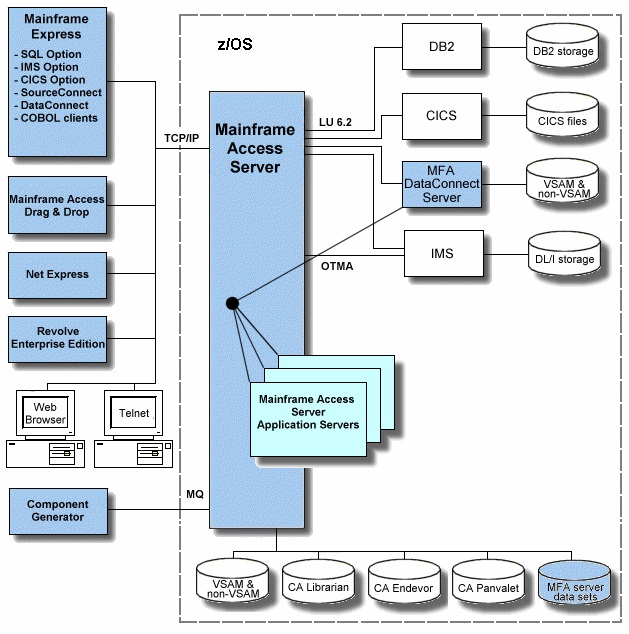

Mainframe Architecture

Key Components -

• Central Processing Unit (CPU) - Mainframes typically have multiple CPUs (called processors) to handle parallel processing, which improves performance and throughput.

  Mainframe CPUs are highly specialized, with features like out-of-order execution and simultaneous multithreading (SMT), which allows them to handle multiple instruction streams simultaneously.
• Memory and Caching - Memory (RAM): Mainframes use large amounts of memory to store data and instructions during processing. Mainframes use virtual memory to extend physical memory, which allows them to handle much larger workloads efficiently.
• I/O Subsystem - It allows the system to interact with external devices like storage units, networks, and printers.

  It has dedicated processors called I/O channels that manage data transfers between the CPU and peripheral devices.
• Storage Systems -
  • Direct Access Storage Devices (DASD): Mainframes use DASDs, which are high-capacity disk storage systems optimized for fast data access and retrieval. Storage is organized using RAID (Redundant Array of Independent Disks) to ensure data availability and redundancy.
  • Tape Drives: Although they may seem outdated, tape storage is still used in mainframes for backup and archiving because it is cost-effective and can store massive amounts of data securely.
• Operating System - z/OS: It is the most widely used mainframe operating system, known for its ability to manage multiple workloads, and ensure security and high availability. It can handle batch processing, online transaction processing (OLTP), and real-time analytics simultaneously.

  Other operating systems include Linux on Z, which allows open-source applications to run on mainframes, and z/VM, which provides virtualization capabilities.
• Virtualization (LPARs) - It allows a single mainframe to be divided into multiple logical systems, each running its own instance of an operating system and applications. LPARs provide resource isolation, making it possible to run multiple workloads independently.
• Security (RACF and Other Systems) - RACF (Resource Access Control Facility): RACF is the main security system for IBM mainframes. It controls user access to system resources, authenticates users, and provides auditing and logging capabilities to track system usage.
• Network and Communication Systems - Mainframes connect to networks via high-speed adapters, allowing them to communicate with other systems, databases, and devices. TCP/IP is the primary protocol used for communication, though SNA (Systems Network Architecture) is still used for legacy system communications.

  Mainframes often employ hipersockets, which are virtual network interfaces that allow different LPARs to communicate internally without external network hardware.

Types of Workloads -

• Batch Processing - Mainframes are optimized for batch processing, which involves processing large volumes of jobs (such as payroll, data updates, or report generation) automatically, without user interaction.
• Online Transaction Processing (OLTP) - OLTP is the real-time processing of high-volume transactions (thousands) per second, such as banking, retail, and airline reservations.
• Real-time Analytics - Modern mainframes support real-time analytics, allowing businesses to process massive amounts of data and derive insights instantly.
• Cloud Integration - Mainframes are increasingly integrated with cloud platforms, allowing them to work with both on-premises and cloud environments.
