Merging DataSets

Merging DataSets Example

Merging DataSets Tutorial

Scenario - Merge two PDS and copy all members to output PDS.

JCL -

----+----1----+----2----+----3----+----4----+----5----+
//MATEPKM  JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//************************************************
//* TO MERGE MANY TO ONE PDS
//************************************************
//STEP50   EXEC PGM=IEBCOPY
//SYSPRINT DD SYSOUT=*
//SYSOUT   DD SYSOUT=*
//SYSDUMP  DD SYSOUT=*
//INPPDS1  DD DSN=MATEPK.IEBCOPY.INPPDS,DISP=SHR
//INPPDS2  DD DSN=MATEPK.IEBCOPY.INPPDS1,DISP=SHR
//OUTPDS   DD DSN=MATEPK.IEBCOPY.OUTPDS,DISP=OLD
//SYSIN    DD *
    COPY  OUTDD=OUTPDS
          INDD=INPPDS1,INPPDS2
/*

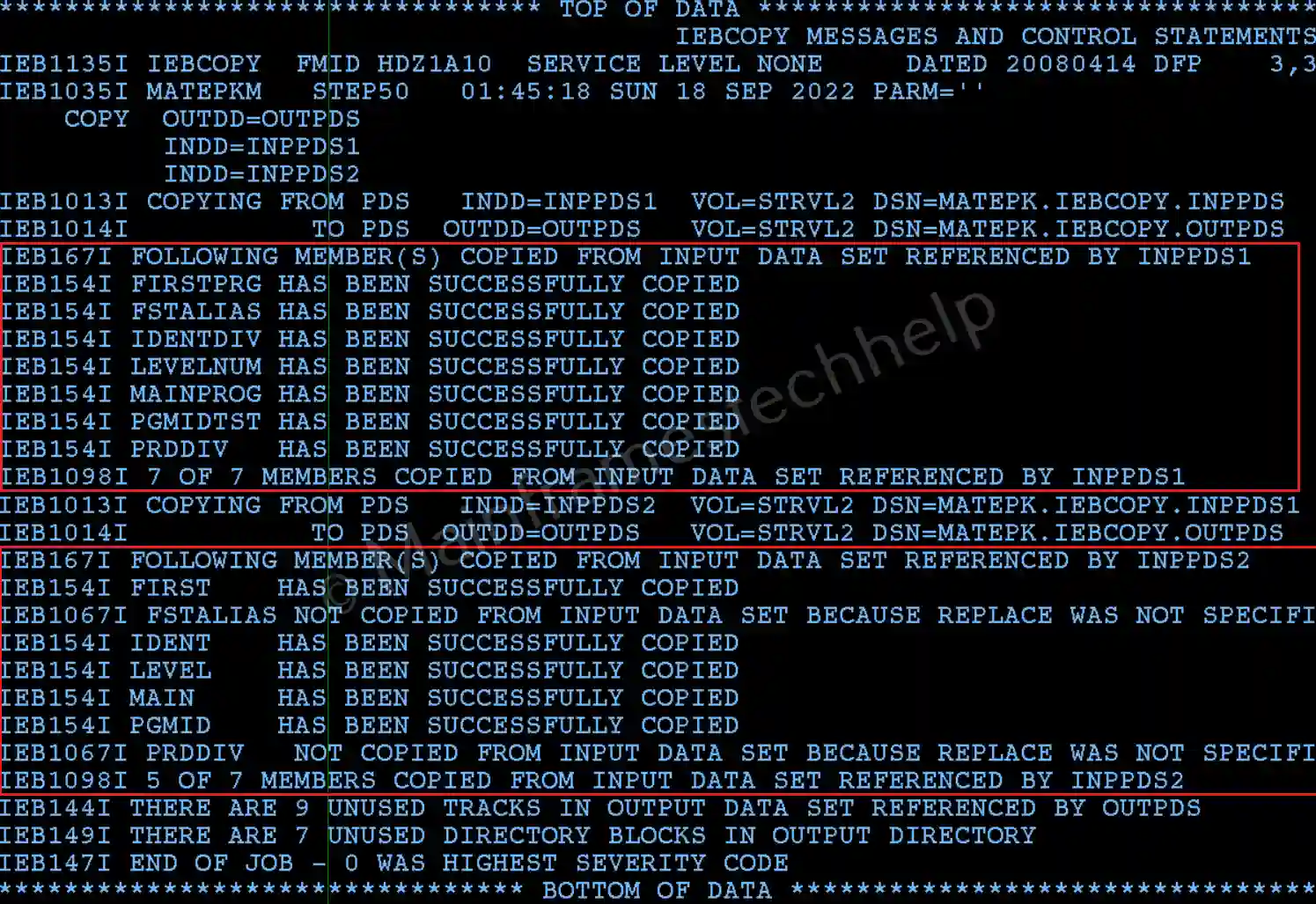

Job Status -

Merge Job Status

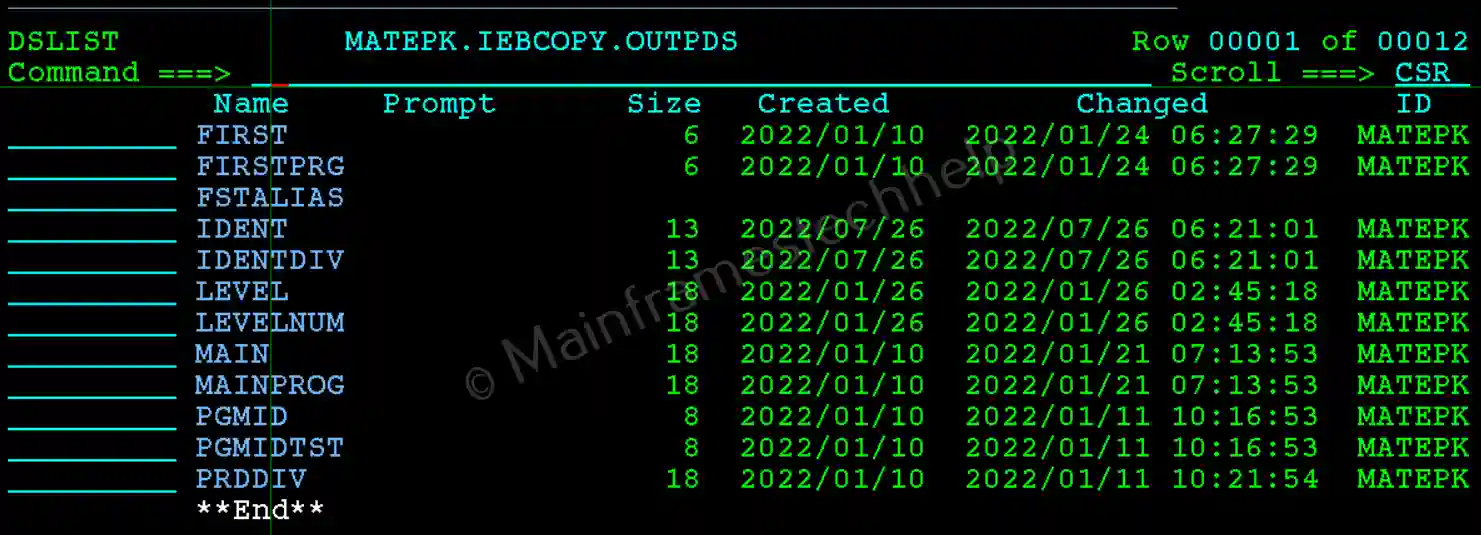

Output -

Merge Output

Explaining Example -

  • INPPDS1 DD DSN=MATEPK.IEBCOPY.INPPDS,..
    INPPDS2 DD DSN=MATEPK.IEBCOPY.INPPDS1,..     - Specifies the input PDS file.
  • OUTPDS DD DSN=MATEPK.IEBCOPY.OUTPDS - Specifies the output PDS.
  • COPY OUTDD=OUTPDS
    INDD=INPPDS1,INPPDS2     - Specified INPPDS1, INPPDS2 are inputs and OUTPDS is output.
