Copying Datasets

Copying Datasets Example

Copying Datasets Tutorial

Scenario - Copy from one PDS to another resides on different volume.

JCL -

----+----1----+----2----+----3----+----4----+----5----+
//MATEPKC  JOB (123),'MTH',CLASS=A,MSGCLASS=A,MSGLEVEL=(1,1),
//             NOTIFY=&SYSUID
//****************************************************************
//* TO COPY PDS DATA SET ANOTHER PDS DATA SET ON DIFFERENT VOLUME
//****************************************************************
//STEP10   EXEC PGM=IEBCOPY
//SYSPRINT DD SYSOUT=*
//SYSOUT   DD SYSOUT=*
//SYSDUMP  DD SYSOUT=*
//SYSUT1   DD DSN=MATEPK.IEBCOPY.INPPDS,DISP=SHR
//SYSUT2   DD DSN=MATEPK.IEBCOPY.OUTPDS,
//            DISP=(NEW,CATLG,DELETE),
//            SPACE=(TRK,(10,10,10),RLSE),
//            UNIT=3390,VOL=SER=DEVHD4,
//            DCB=(DSORG=PO,RECFM=FB,LRECL=80,BLKSIZE=800)
//SYSIN    DD *
     COPY INDD=SYSUT1,OUTDD=SYSUT2
/*

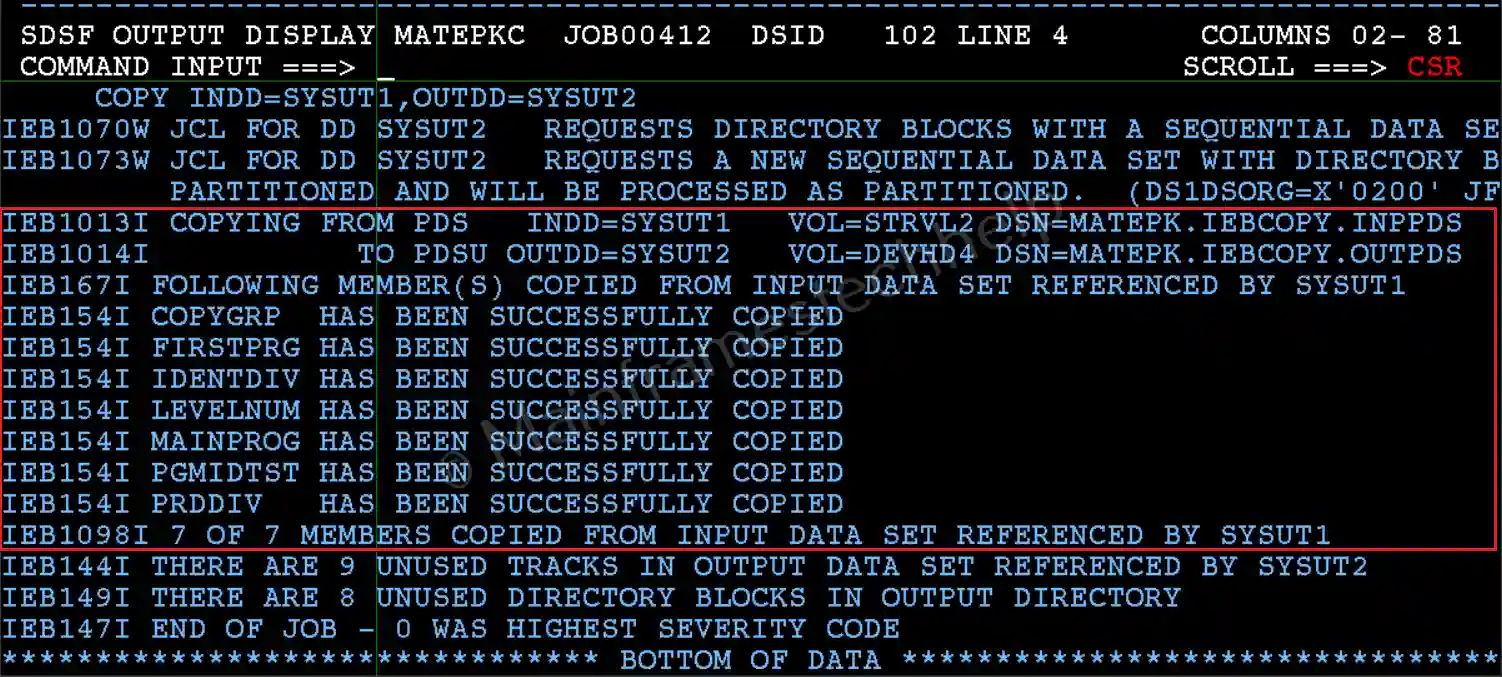

Job Status -

COPY Datasets Job Status

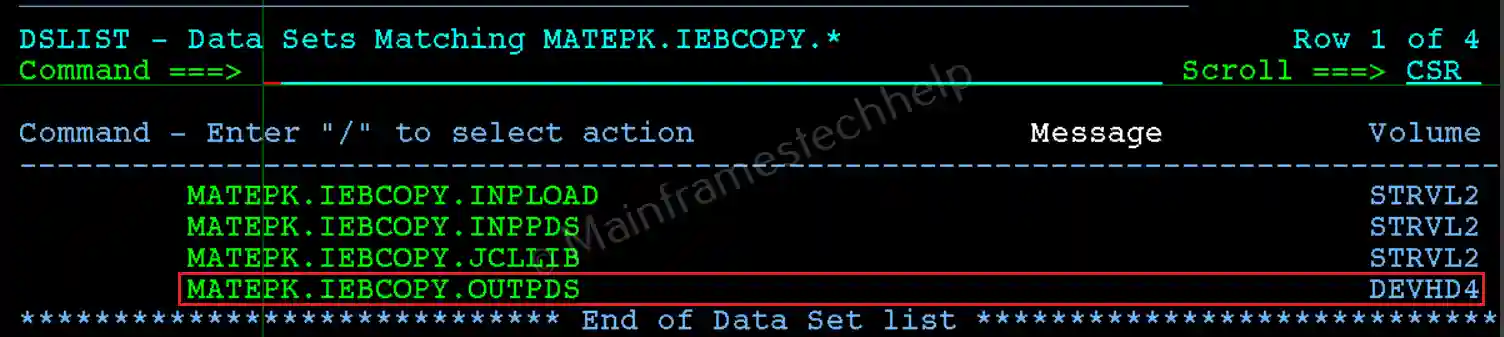

Output -

COPY Datasets Output

Explaining Example -

  • SYSUT1 DD DSN=MATEPK.IEBCOPY.INPPDS - Specifies the input PDS and resides on the volume STRVL2.
  • SYSUT2 DD DSN=MATEPK.IEBCOPY.OUTPDS,.. - Specifies the output new PDS and creating on the volume DEVHD4.
  • COPY INDD=SYSUT1,OUTDD=SYSUT2 - Copies all members from SYSUT1 to SYSUT2. Both input and output PDS are on different volumes.
