Define Fixed-length RRDS
Define Fixed-length RRDS Example
Scenario - Create RRDS with fixed-length records of size 47 bytes.
JCL -
----+----1----+----2----+----3----+----4----+----5
//MATEPKE JOB (123),'MTH',CLASS=A,
// MSGCLASS=A,
// MSGLEVEL=(1,1),
// NOTIFY=&SYSUID
//*********************************************
//* DEFINE VSAM FIXED LENGTH RRDS
//*********************************************
//STEP01 EXEC PGM=IDCAMS
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
DEFINE CLUSTER -
(NAME(MATEGJ.TEST.RRDS) -
RECORDSIZE(47,47) -
CYLINDERS(2,1) -
VOLUMES(DEVHD4) -
NUMBERED -
REUSE ) -
DATA(NAME(MATEGJ.TEST.RRDS.DATA))
/*
Output -

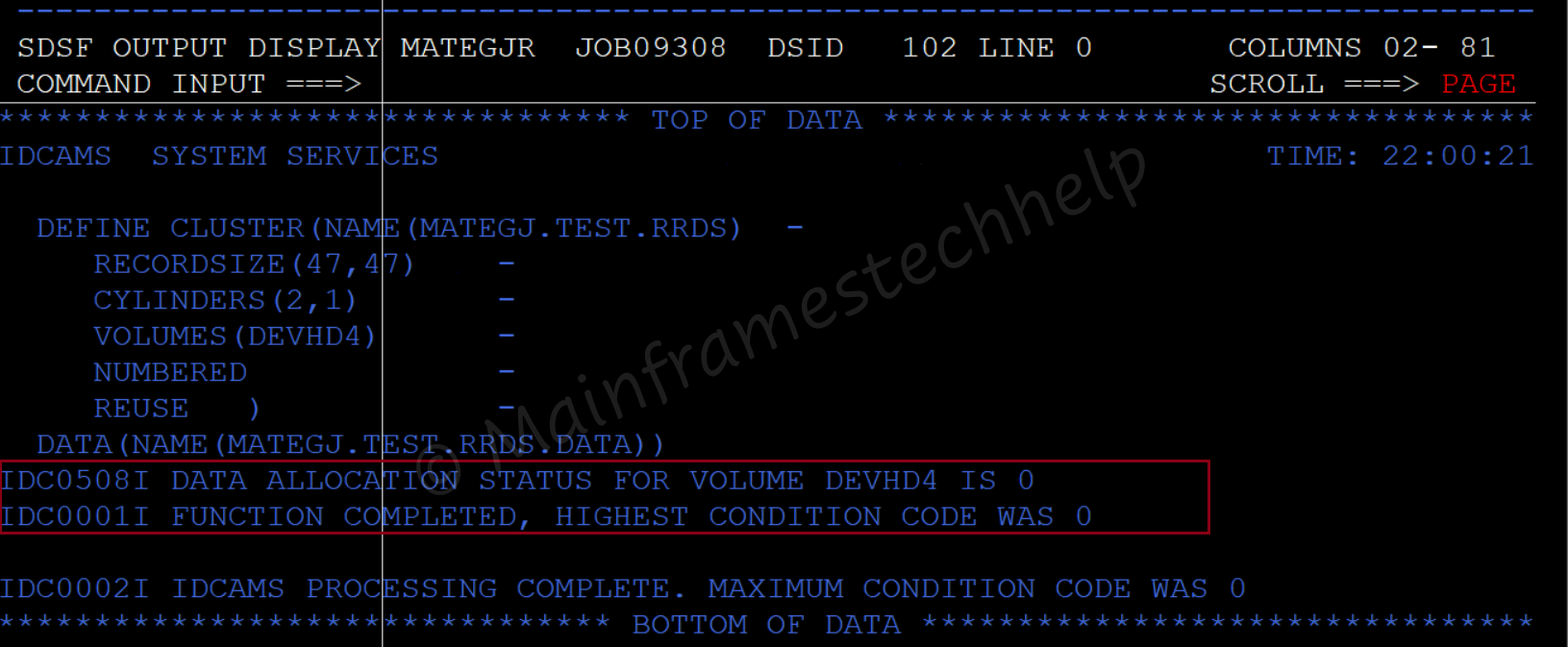

Once the above JCL is submitted, check the MAXCC of the job for any errors. If the MAXCC is 00 or 04, KSDS successfully created.
![RRDS SYSPRINT](img/create-rrds-output0.png)

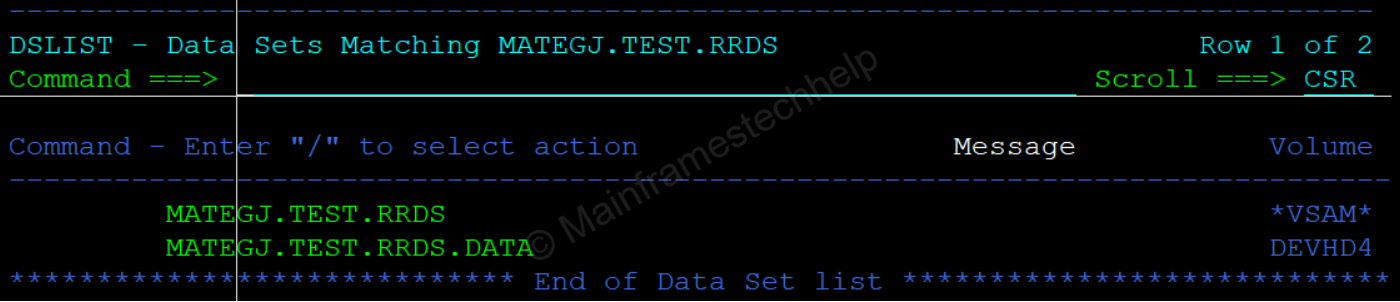

Verify the RRDS in 3.4 (Dataset List utility) or any File management tools for the existance.
![RRDS OUTPUT](img/create-rrds-output.png)
Explaining Example -
In the above example,
- RECORDSIZE(47,47) specifies that the record average length is 47, and the maximum length is 47. So the RRDS file we are creating is fixed-length.
- CYLINDERS(2,1) specifies the primary memory allocation is 2 CYLINDERS, and secondary memory allocation is 1 CYLINDER.
- VOLUMES(DEVHD4) specifies that allocate the RRDS on volume DEVHD4.
- NUMBERED parameter specifies the file is to create RRDS.
- REUSE specifies the memory can reuse immediately once the file gets deleted.
